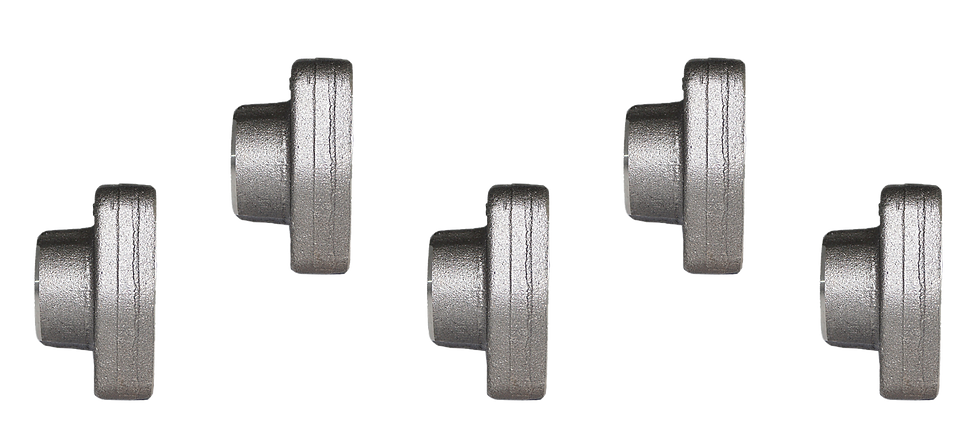

SAE Flat Face

SAE Flat Face

Precision Flange Products

All flange components are free from all handing burrs, loose scale, and slivers that might become dislodged in use. The defects might affect the flange serviceability.



Therefore, all machined product surfaces shall have a surface roughness value of Ra max less than 3 µm.

SAE Blind Flat Flange

Available Configurations

There are over 60 different configurations as standard in a range of different sizes. The breadth of the product provides flexibility in plumbing to ensure the best solution in various system applications.

The flange can withstand working pressure up to 414 bars or 6000psi. Individual flange indicated different working pressure and it is subjected to flange body size, environment temperature, and sealing material.



The safety factor is 4 times than operating working pressure.

High-Pressure Connection

SAE Flat Face
